From Feeding to Conveying: Building a Stable and Smooth Material Flow System
With a wide variety of small ingredients on the production floor, each with different physical properties, the design of the feeding stage is crucial.
l Considering the tendency of powders to absorb moisture and cake, the feed inlet is specially integrated with crushing equipment and screening components. This enables intelligent pretreatment before materials enter the system, preventing blockages at the source and ensuring smooth subsequent processes. The system is equipped with differentiated feeding hoppers that can accommodate multiple material forms simultaneously, reducing the frequency of equipment changeovers.
l The bins are made of mirror-finished stainless steel, which is corrosion-resistant and easy to clean, providing a safe environment for material storage. In the conveying stage, specialized vibration motors and electromagnetic vibrating feeders, combined with precise control algorithms, ensure a stable and controllable material flow, avoiding accumulation or supply interruptions and laying the foundation for accurate measurement.
l The system integrates various equipment such as screw conveyors and belt conveyors, which can be flexibly selected based on material characteristics to achieve seamless flow throughout the entire process. Core components are made of stainless steel and carbon steel, processed through precision welding and anti-corrosion treatment, enabling them to adapt to long-term, high-intensity production.
·
Intelligent Control and Precision Measurement: Making Production Management More Efficient
For production enterprises, the accuracy of the batching stage directly affects the consistency of product quality.
l The system uses a branded rotary paddle level indicator to monitor bin status in real-time. Working in conjunction with high-precision weighing sensors, it achieves dynamic monitoring and precise measurement of materials. This means every batch is traceable, reducing deviations at the source.
l At the control level, the system is equipped with internationally renowned PLCs and electrical components and industrial-grade computers, building a stable and reliable control architecture.
l Coordinated with well-known pneumatic components, actuators such as valves and gates can respond quickly, ensuring high operational sensitivity.
l From feeding to measurement, the entire process can achieve a high degree of unmanned operation, reducing errors caused by manual intervention and improving the consistency of batch production.
Deep Customization and Eco-Friendly Design to Meet Diverse Needs
A mature batching system must not only solve "how" to batch but also consider how to batch well and ensure long-term usability.
l The entire solution is tailor-made regarding equipment configuration and spatial layout, based on the client's actual production site layout, capacity planning, and material characteristics.
l The system integrates a professional dust removal system and pneumatic control system, effectively reducing dust concentrations in the workshop and meeting environmental compliance requirements. Simultaneously, functional expansion interfaces are reserved, facilitating future capacity increases or technological upgrades, which helps extend the equipment's lifecycle.
Conclusion

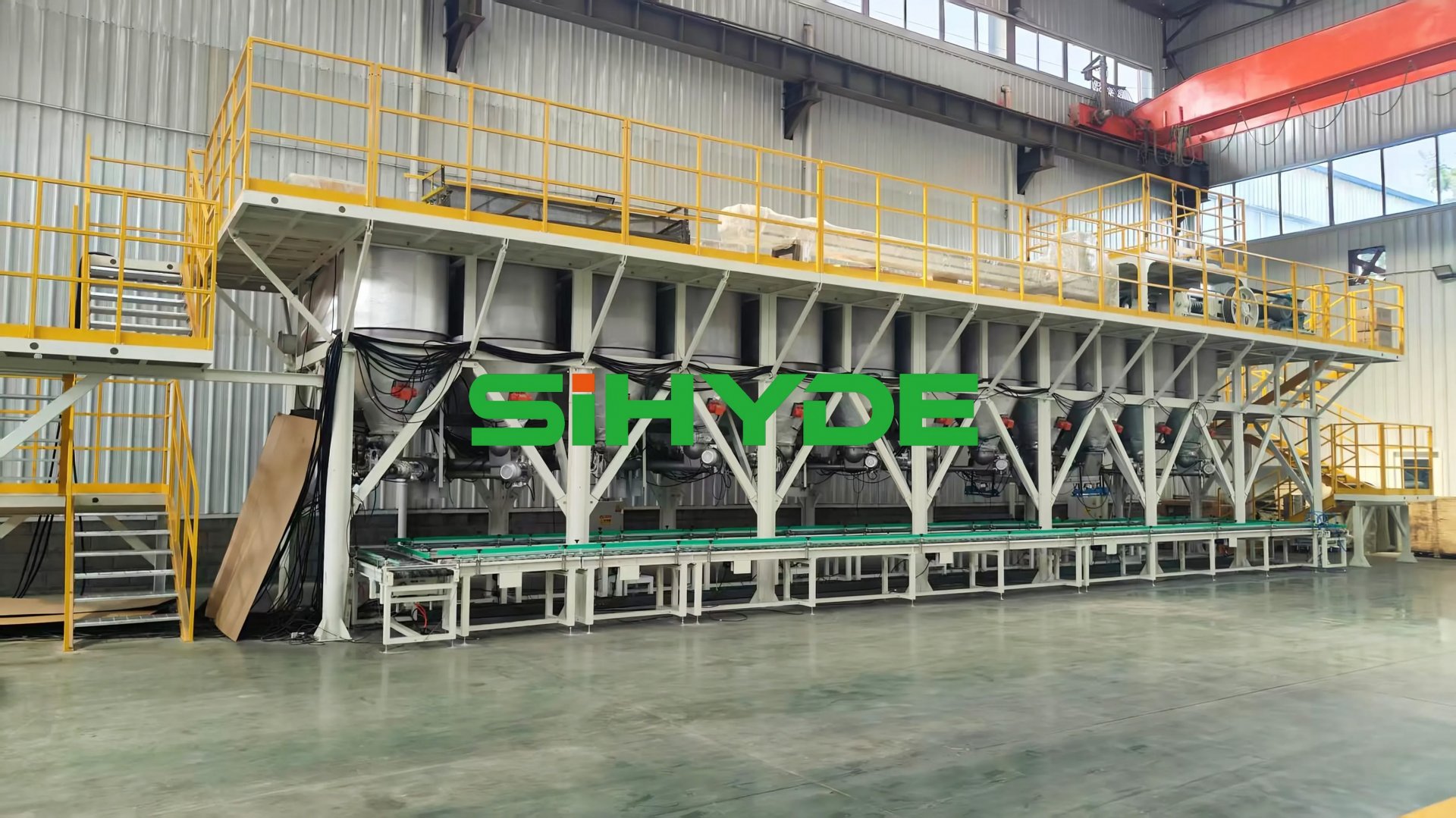

This small ingredient automated batching system, customized for an overseas client, derives its value from combining modular equipment with intelligent control logic. It provides a practical solution that is stable, controllable, and traceable for the delicate process of small ingredient batching.
