I. Full-Process Closed Loop: Automated Coordination from Bag Unpacking to Palletizing

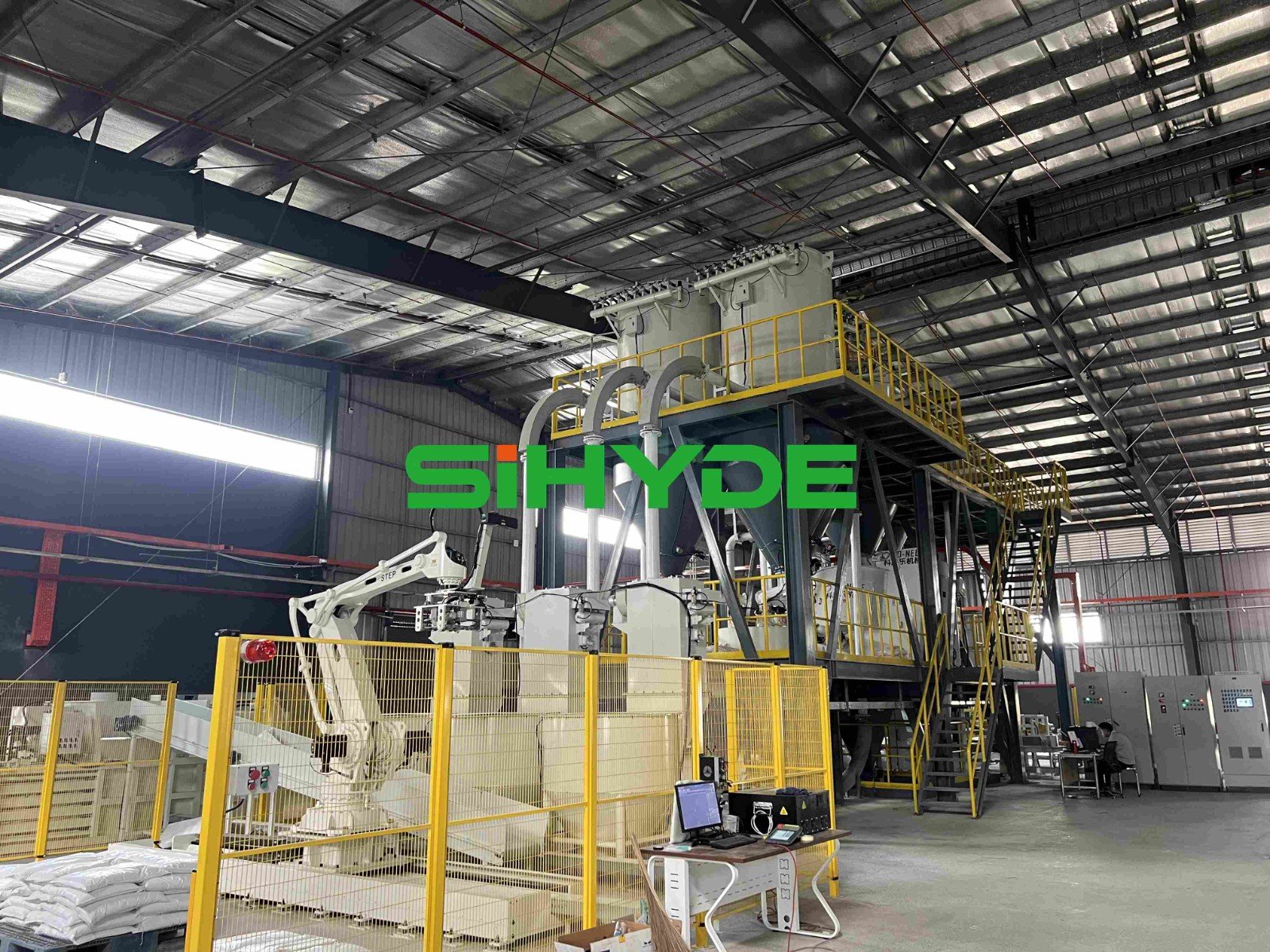

The Sihyde refractory castable production line primarily focuses on solving the issues of continuity and stability in the production process. From the moment raw materials enter the workshop, an automatic bag unpacking machine replaces manual bag breaking. Its built-in dust collector suppresses dust during unpacking and, through a sealed negative pressure pneumatic conveying system, sends materials directly into storage silos. This process achieves complete sealing from the source to storage, effectively improving the workshop environment. Once materials enter the storage silos, the high and low level alarms and bridging breaking devices installed inside prevent material interruptions or blockages during production, ensuring continuous material supply for downstream processes. In the subsequent packaging and palletizing stages, the line's level of automation continues. The automatic packaging machine can stably complete actions like bag feeding, filling, and sewing for materials in 25-50 kg specifications, with an hourly capacity reaching 300-350 bags. Finished bags undergo processes like tipping, shaping, and arranging, becoming neat and orderly, providing good working conditions for the subsequent robotic palletizing system, ultimately achieving automated stacking of finished products.
II. Precision and Stability: Technical Details of Core Equipment
The accuracy of the batching process directly affects the final quality of the castable. This production line employs a weighing system combining fixed weighing hoppers and spiral feeders. It controls accuracy through fast and slow feeding speeds. If an over-tolerance occurs, the system will automatically alarm and shut down, ensuring the accuracy of the formula from the source. The weighed materials are then transported over long distances to the packaging process via a chamber pump pneumatic conveying system using positive pressure sealing, avoiding pollution and loss during intermediate transfer.
III. Environmental Protection and Intelligence: Clean Production & Data Management
The coordinated operation of the entire production line relies on an electrical control system centered around a Siemens PLC. This system not only has basic safety protections like short circuit and overload but, more importantly, can realize operational monitoring of the entire production process, formula management, and data traceability. Operators can manage access permissions and adjust production parameters via an industrial PC, making the production process management more refined and standardized.
With environmental protection being a mandatory requirement, the line is equipped with a centralized baghouse dust collection system. It focuses on recovering dust from major emission points like packaging, achieving compliance with emission standards while also recovering reusable materials, which helps to reduce production costs to some extent.
IV. Conclusion
Overall, the value of this automated refractory castable production line introduced by Sihyde lies in its ability to integrate traditional, discrete production links into a continuous, sealed, and controllable overall process through modular equipment combinations and a centralized control system. It focuses on solving practical problems related to precision, environment, and efficiency in production, providing a proven and pragmatic path for refractory enterprises to transform and upgrade towards intelligent, large-scale production.
