Boron material producers in the region commonly face challenges such as heavy dust, inaccurate batching, frequent material blockages, and low efficiency. In response, Qingdao Sihyde has developed a 5-bin small automated batching system tailored for the boron material industry, focusing on real production pain points and delivering a stable, environmentally friendly, and precise automated solution.
I. Four Major Pain Points of Traditional Batching Hindering Production Upgrades
l Severe Dust Pollution: Powders like boric acid generate significant dust, leading to poor workshop environments and increasing pressure related to environmental protection and safety.
l Large Batching Errors: Manual weighing is inconsistent, resulting in noticeable batch-to-batch variations, making product quality difficult to guarantee.
l Frequent Material Blockages: Powders with poor flowability are prone to bridging; the mixed use of granules and powders disrupts smooth conveying.
l Low Management Efficiency: Manual record-keeping and slow recipe changes, coupled with untraceable data, result in high operational and maintenance costs.
·
II. Sihyde System: Precisely Addressing Production Pain Points
1. Four-Stage Dust Collection Network for Source-Level Dust Suppression
The system is equipped with four-stage pulse jet dust collection at key points such as feeding, storage, and metering. The fully enclosed process suppresses dust at the source, effectively controlling dust dispersion, meeting environmental protection and safety production requirements, and improving the working environment.
2. Screw + Belt Dual-Mode Conveying for Anti-Blocking and Wide Applicability
For boric acid and similar powders, it is equipped with arching-breaking screw conveyors to prevent bridging and clogging. For granular or lumpy materials like petroleum coke and graphite, belt conveyors or standard screws are used, ensuring compatibility with multiple material forms and stable, reliable conveying.
3. High-Precision Weighing for Stable and Consistent Formulations
Utilizing a PLC + high-precision weighing sensor, the system achieves a dynamic error of ≤±0.5%. It automatically proportions according to preset recipes, eliminating manual errors and ensuring consistent composition and stable quality across batches.
4. Centralized Intelligent Control for One-Key Efficient Operation
A Siemens PLC + industrial touchscreen central control system enables one-key automation of the entire process, from feeding and conveying to metering and mixing. It supports recipe management, real-time monitoring, and data traceability, featuring simple operation and significantly enhanced efficiency.
III. Compact Design to Better Meet Customer Needs

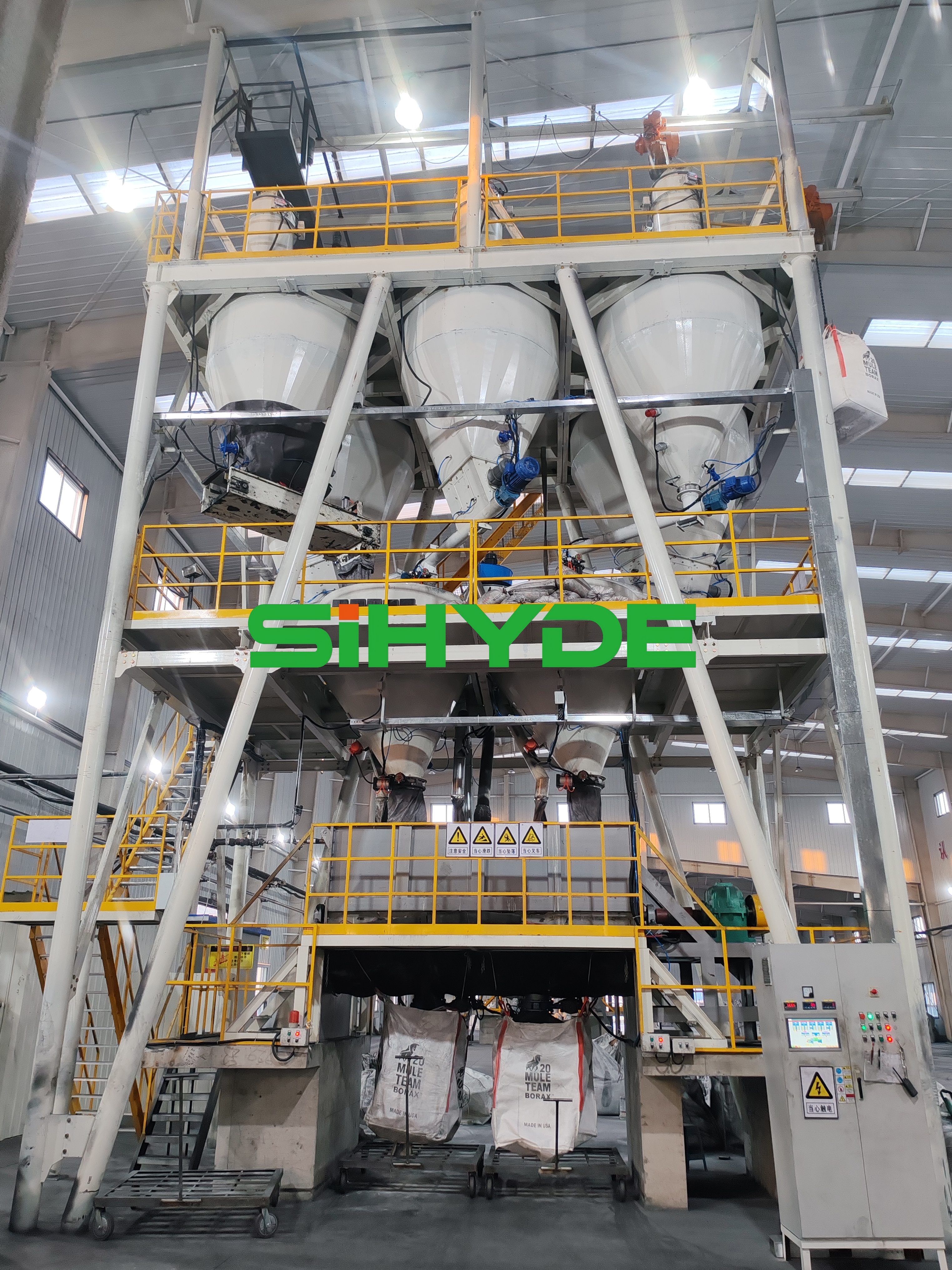

The system features a compact, modular layout with 5 bins, suitable for small-batch, high-mix precision production. It is ideal for boron material processing plants, laboratories, and small workshops, and can operate independently or be integrated with packaging lines.
Conclusion
Sihyde’s 5-bin small automated batching system for boron materials in Xinjiang effectively resolves key batching challenges with its low dust, high precision, high stability, and ease of operation. It helps boron material enterprises improve quality, increase efficiency, reduce costs, meet compliance standards, and effortlessly achieve intelligent production upgrades.
