Sihyde automatic packaging and palletizing system delivers a complete automated solution for the post processing of bag packed finished products. It covers the whole workflow from finished packaging to pallet formation, helping factories reduce reliance on site labor and achieve stable operation of back end procedures.
1. Conveying and Shaping Unit: Optimize Material Flow and Lay a Solid Foundation for Palletizing
As the front end module of the whole system, it focuses on conveying and shaping bag packed materials to prepare for robotic operation and avoid stacking risks caused by irregular bags.
l Stable multi condition conveying: Equipped with belt conveyors and inclined conveyors to adapt to height differences in workshops and transfer materials between stations instead of manual handling.
l Bag shaping and pressing: Shaping and pressing mechanisms compress fluffy, bulging and wrinkled bags to eliminate internal gaps. It prevents stacking collapse and optimizes warehouse space occupancy.
l Material buffering and sequencing: A pre palletizing buffer unit arranges materials in order. When upstream feeding fluctuates, it adjusts the supply rhythm to avoid frequent production stops and maintain continuous manufacturing.
2. Robotic Palletizing Unit: Flexible Gripping to Guarantee Stacking Quality

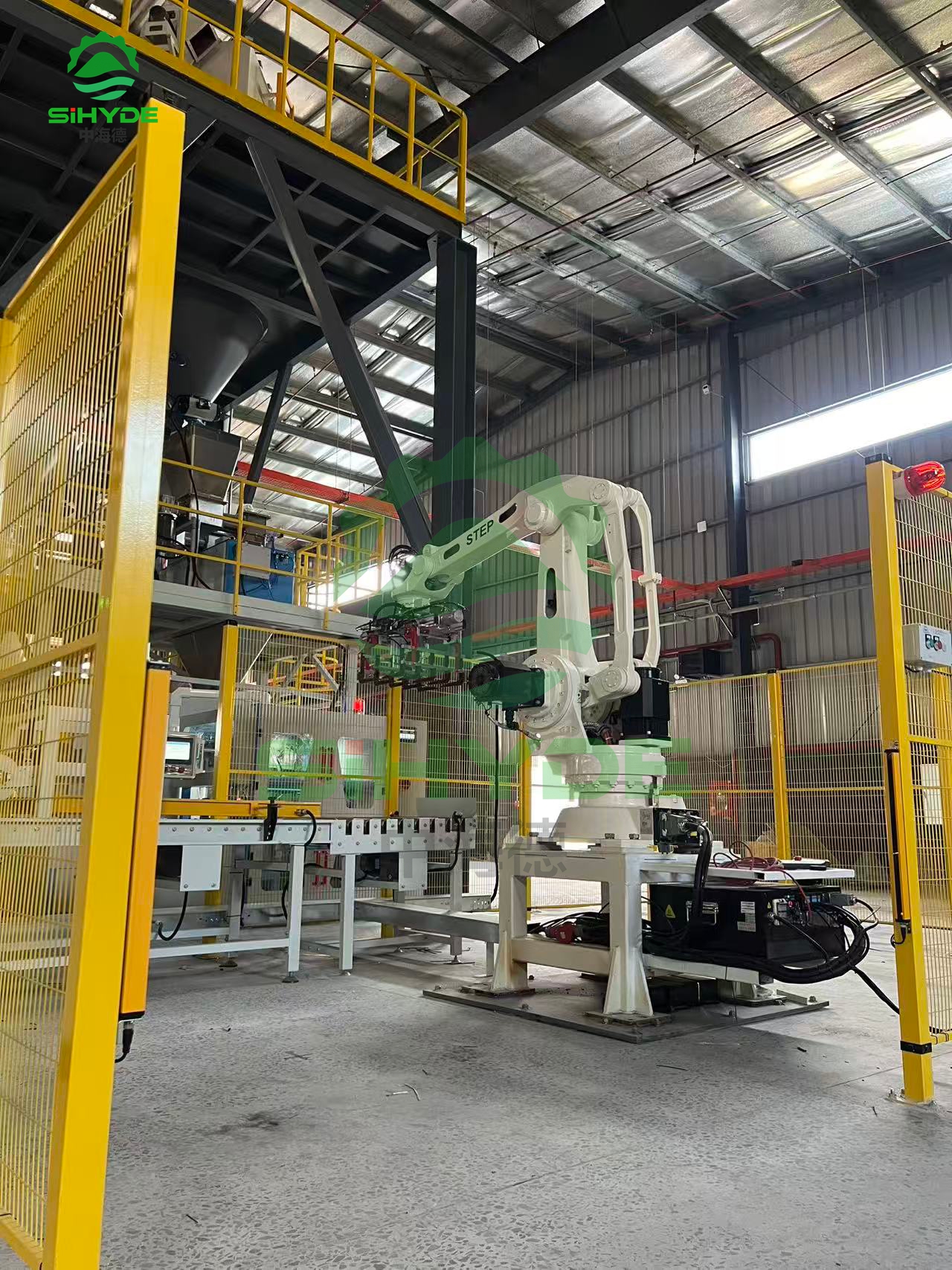

The robotic palletizing module acts as the core actuator of the whole production line. Custom end effectors are matched with robot bodies to adapt to diverse packaging materials and working modes.
l Custom grippers for varied packages: Specially developed gripper structures for woven bags, paper bags, cartons and other packaging types ensure firm gripping without scratching outer packages. The equipment supports conventional pallet stacking as well as small bag stacking inside jumbo bags.
l Uniform and regular stacking: High repeat positioning accuracy of robots ensures consistent placement of each bag with neat pallet patterns, maximizing the utilization rate of warehouse space.
l On line inspection and rejection: Integrated weight detection and rejection devices screen materials before palletizing and automatically divert off spec products to reduce defective output at the source.
3. Control & Safety Protection Unit: Digital Management, Operational Safety and Production Flexibility
An automated production line is not only for mechanical actions. The control system and safety mechanism determine the long term reliable operation of equipment.
l Interconnected and traceable production data: The system can connect with upstream batching control systems to build a data chain covering production, packaging and palletizing. It enables full process production traceability and accelerates the digital transformation of factories.
l Complete human machine safety protection: Physical safety fences, emergency stop buttons and interlocked safety gates separate human and robotic working zones to prevent workplace injuries and improve on site operating conditions.
l Fast format changeover for multi spec production: The system supports quick configuration switching for various packaging sizes. For multi product batch production, it shortens setup time and improves line flexibility for bag material manufacturing across multiple industries.
4. Suitable Application Scenarios for This Automatic Packaging & Palletizing System
l Manufacturers in chemical, building material, food, refractory and other industries with bag packed finished products
l Enterprises suffering from labor shortage and high turnover at manual palletizing posts, aiming to cut manpower for heavy duty jobs
l Plants troubled by irregular pallets with high breakage and collapse loss during storage and transportation
l Factories renovating old production lines or building new ones that require a fully automated closed loop from batching to packaging and palletizing
Sihyde provides customized planning based on workshop layout, material characteristics and actual working conditions. We offer full cycle services including scheme design, equipment manufacturing, on site commissioning and operator training.
