Taphole clay quality directly affects blast furnace stability and tapping efficiency. Traditional taphole clay batching processes have long suffered from material bridging causing feed interruptions, large manual batching errors, severe dust pollution, and low efficiency in multi-formula switching. The sihyde automatic taphole clay batching production line integrates four major systems – 30‑bin coordinated feeding, 0.5%‑grade high‑precision metering, intelligent production line scheduling, and robotic palletizing – providing refractory material enterprises with a full‑process automation solution from raw material conveying, precise weighing to finished product palletizing.
Multi‑Bin Coordination and Anti‑Bridging Feeding Module
The production line integrates 30 standardized storage bins, capable of simultaneously handling powders and granular materials of varying densities such as high‑alumina clinker and silica fume. Targeting the common industry challenge of powder bridging and difficult discharge in taphole clay batching, this module provides systematic guarantees from both feed stability and continuity dimensions:
Bin configuration and monitoring: Each bin is equipped with a level indicator and a WAM level monitoring system, providing real‑time feedback on material inventory inside the bin and delivering accurate raw material stock data to the central control system.
Composite anti‑bridging: Pneumatic jetting and mechanical vibration are combined in a dual‑mechanism anti‑bridging system – aggregate bins use high‑frequency vibration to force discharge, while powder bins are assisted by air pads, fundamentally eliminating the risk of feed interruption caused by material bridging.
Blow‑cleaning device: Each bin is equipped with a blow‑cleaning device on the inner wall, which periodically performs pulse‑type sweeping to prevent material adhesion and build‑up, reducing the frequency of manual cleaning interventions.
Precision Metering and Closed‑Loop Control System
Consistency of the taphole clay formula is the core prerequisite for ensuring stable taphole clay quality. This module employs a two‑stage feeding mechanism and real‑time closed‑loop feedback to keep dynamic metering errors within ±0.5%:
Two‑stage feeding strategy: Screw conveyors perform rough feeding, quickly transporting most of the material close to the target value; vibratory feeders take on the fine‑adjustment task, completing the final make‑up at a lower flow rate, balancing both efficiency and accuracy.
Real‑time closed‑loop feedback: Compression load cells continuously collect weighing data and send it back to the Siemens PLC control system, which dynamically adjusts the feeding speed; pneumatic butterfly valves precisely cut off the flow when the set value is reached, ensuring strict consistency of each batch formula.
Fully enclosed dust suppression: From feeding, conveying, metering to packaging, the entire process uses enclosed pipeline conveying; pulse‑jet dust collectors cover all stages, and galvanized pipe networks with corrugated hoses provide directional dust capture.
Flexible Intelligent Production Line Scheduling Module
Taphole clay production involves multiple raw materials and multiple formulas. Traditional production lines often require lengthy downtime for adjustments when switching between different formulas. This module enables one‑click switching and flexible scheduling of multiple formulas through a central control platform:
30‑material collaborative configuration: The system supports flexible coordination between powder bins and aggregate bins, capable of handling up to 30 different raw materials simultaneously to meet the needs of complex formula feeding.
Centralized integrated control: The Siemens PLC with a 15‑inch touchscreen HMI integrates three core functions – recipe calling, variable‑frequency linkage, and production traceability. Operators can monitor and adjust parameters throughout the entire process via the screen.
Reduced manual intervention: Automated scheduling and closed‑loop control greatly reduce reliance on manual operations, cutting overall manual intervention by about 30% and effectively eliminating human‑induced errors.
Robotic Palletizing and Packaging Integration Module
From finished product packaging to palletizing and warehousing, this is one of the most labour‑intensive stages in the taphole clay production line. This module achieves unmanned operation in the finished‑product handling stage through automated packaging and robotic palletizing systems:
Automatic sewing and bagging: After the open‑mouth bagging machine completes material filling, it automatically performs folding and sewing, replacing manual bagging and sealing.

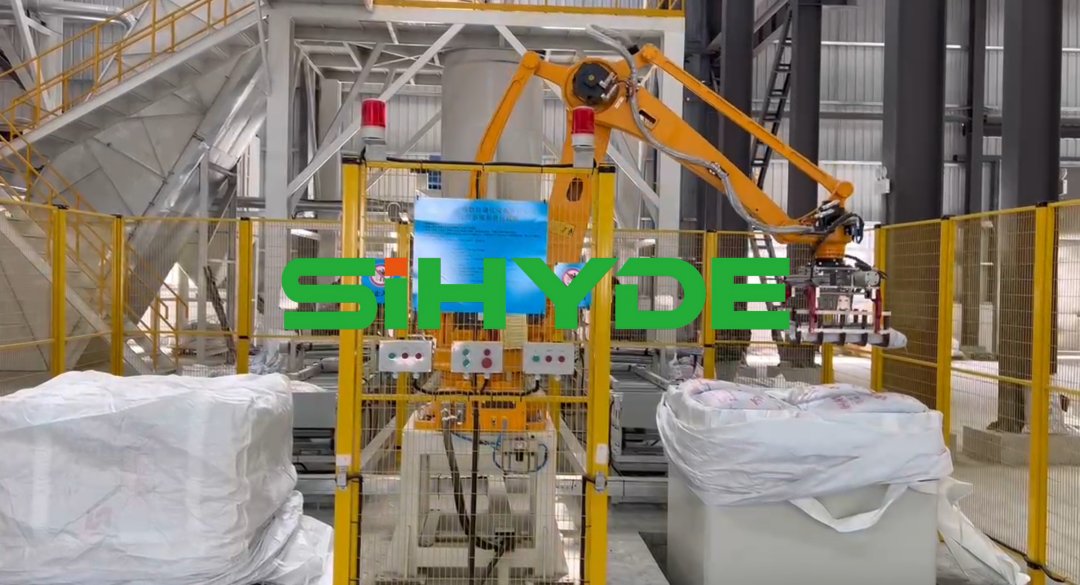

Robotic full‑stack palletizing: An Estun industrial robot with a single gripper performs palletizing operations; a bag flattening machine and a buffer conveyor work together to flatten and correct the bag posture, ensuring neat pallet stacking.
Ton‑bag auxiliary stacking: A ton‑bag palletizing mechanism assists in stacking and arranging large‑sized bags, seamlessly integrating with the robotic palletizing system.
Application Industries and Customer Cases
Refractory Materials and Taphole Clay Production
The taphole clay batching production line is suitable for refractory material manufacturers, enabling the construction of fully automatic production workshops from raw material storage, precise batching to finished product packaging.
It meets the requirements for continuous, large‑scale, high‑standard production of taphole clay and other refractory materials.
With multi‑formula rapid switching capability, it is suitable for flexible manufacturing scenarios where multiple grades of taphole clay products are produced on the same line.
Frequently Asked Questions
Q1: Powders are prone to bridging and clogging. How does the production line ensure uninterrupted feeding?
A1: The taphole clay batching production line adopts composite anti‑bridging technology. Aggregate bins are equipped with high‑frequency vibrators to force discharge, while powder bins are fitted with WAM level monitoring and air‑pad flow aids. Pneumatic jetting and mechanical vibration work together in a dual mechanism. In addition, blow‑cleaning devices are installed on the inner walls of the bins to periodically sweep and prevent material adhesion, ensuring continuous feeding.
Q2: Is it convenient to switch between multiple formulas? Is there a risk of cross‑contamination?
A2: The production line supports flexible intelligent scheduling. The 30 bins can store different raw materials simultaneously, and formula calling and automatic switching are achieved through the Siemens PLC control system. Each bin operates independently for feeding and metering. During switching, the system automatically adjusts the corresponding bin’s feeding and weighing parameters without manual intervention, minimising cross‑contamination risks.
Q3: What level of metering accuracy can be achieved, and how is the stability of each batch formula guaranteed?
A3: The taphole clay batching production line uses a 0.5%‑grade high‑precision staged metering system, with dynamic errors ≤ ±0.5%. The screw conveyor rough‑feeding combined with vibratory feeder fine‑adjustment, compression load cells sending real‑time data to the PLC, and precise shut‑off by pneumatic butterfly valves form a complete closed‑loop feedback control, ensuring consistent formula accuracy for every batch.
Conclusion
The taphole clay batching production line is built around 30‑bin flexible feeding, a 0.5%‑grade high‑precision staged metering system, Siemens PLC intelligent control, and robotic full‑stack palletising. It systematically addresses long‑standing pain points such as feeding interruptions, metering deviations, dust pollution, and excessive manual intervention in taphole clay batching, providing reliable technical support for refractory material enterprises to achieve full‑process automation and intelligent upgrading.
