In high-temperature industrial sectors such as metallurgy, building materials, and chemical engineering, refractory material are known as the "heart of industrial furnaces", as their quality directly determines the service life of furnaces and production safety. The batching process, as the "first checkpoint" in refractory production, has long faced pain points such as large errors in manual batching, severe dust pollution, and slow response to multi-variety orders. Today, the emergence of non-standard customized refractory batching systems is driving the industry from traditional extensive production to a new intelligent and green paradigm with its core advantages of precision, efficiency, and environmental protection.
"Previously, changing a formula took at least 2 hours, the dust was so thick we dared not open windows, and 6 workers hovering around one line still had frequent quality issues," complained the person in charge of a refractory enterprise in Anhui, echoing the common dilemma of the industry. However, the 30-bin non-standard customized automated batching system recently put into operation by the enterprise has completely reversed this situation—formula switching now takes only 3 minutes, workshop dust concentration meets standards, the number of single-line operators has been reduced to 2, and product qualification rate has increased by 15%. Behind this lies the technical advantage of the non-standard customized system of "tailoring solutions to specific needs".
Core Advantage 1: Precision Metering, Laying the Foundation for Quality
Batching accuracy is the lifeline of refractory quality. Traditional manual batching typically has an error of 1%-2%, which easily leads to non-compliance of core properties such as refractoriness and strength of products. The non-standard customized system controls batching errors within ±0.5% (and even ±0.2% for some fine powders) through a two-stage speed regulation strategy of "rough feeding + fine adjustment" and high-precision sensing technology, far exceeding the industry's conventional level.
Taking the castable batching line customized by Sihyde for a Shandong enterprise as an example, the system matches exclusive feeding mechanisms for materials with different densities and fluidities (such as alumina powder and silica fume), paired with pressure-type weighing sensors with an accuracy of 0.5‰. Real-time feedback and adjustment via Siemens PLC system ensure precise and consistent raw material ratio for each batch, eliminating product scrapping caused by batching deviations from the source.
Core Advantage 2: Flexible Adaptation, Solving the Problem of Multi-Variety Production
The current refractory industry is facing a trend of multi-variety, small-batch orders, and the fixed processes of standard production lines are difficult to adapt. The non-standard customized system adopts a modular design, which can flexibly configure the number of bins and mixer types according to enterprise production capacity (1,000-50,000 tons/year) and product types, achieving "Lego-style" flexible combination.

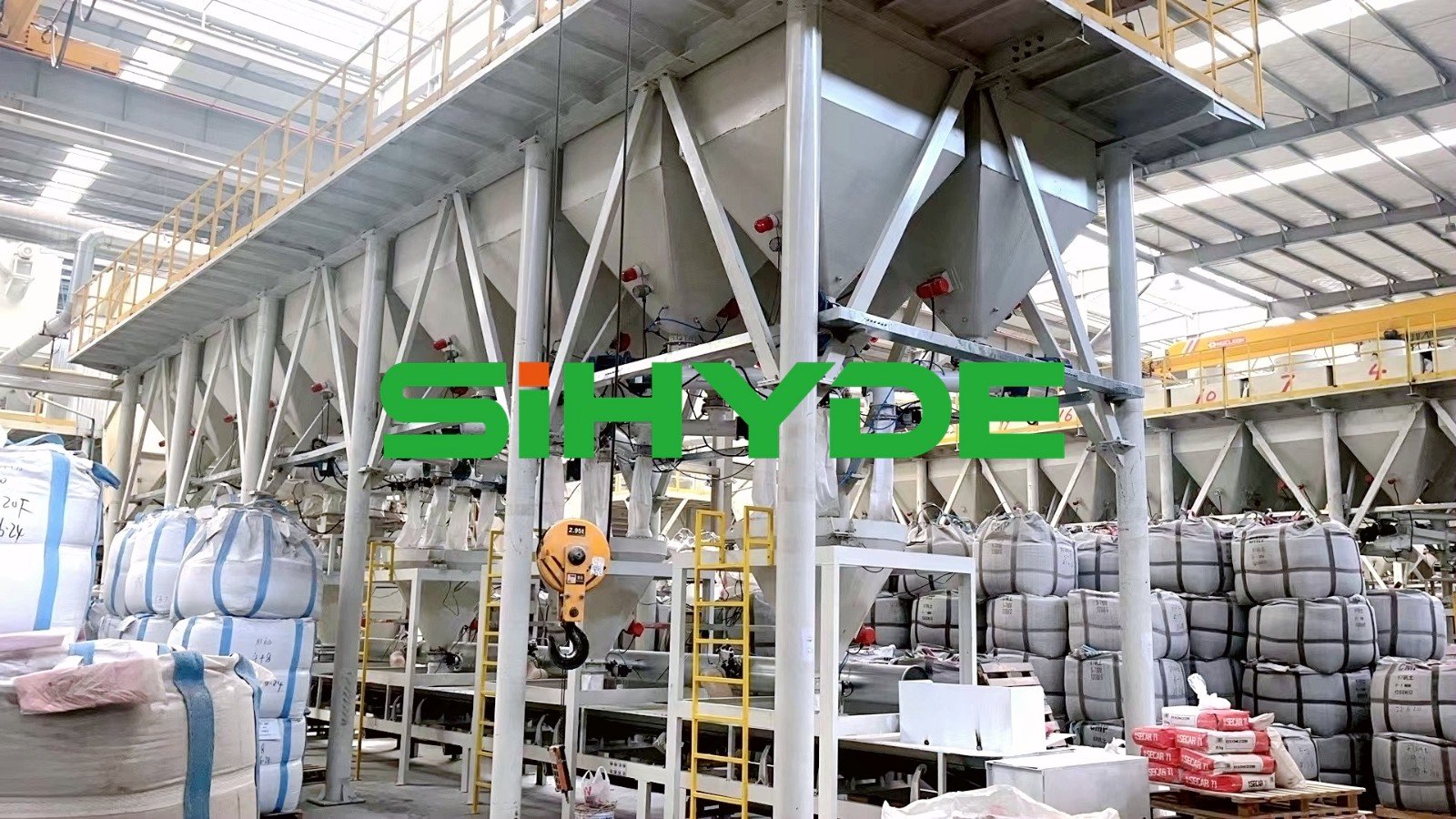

The 30-bin intelligent storage system of the Anhui enterprise covers two categories: powder bins and aggregate bins, which can be adapted to various materials such as high-alumina clinker and silica fume. With exclusive anti-blocking technology—powder bins use air disc fluidization + pulse jetting to prevent bridging, and aggregate bins use high-frequency vibration motors to force arch breaking—ensuring stable feeding of materials with different characteristics, and the continuous operation stability of the system is improved by more than 90%. This design allows enterprises to quickly switch hundreds of formulas without replacing production lines, greatly improving order response efficiency.
Core Advantage 3: Green and Sealed, Creating a Clean Production Environment
Dust pollution is a long-standing problem in refractory production and a key bottleneck for enterprises to meet environmental standards. The non-standard customized system adopts a dual-track design of "source prevention and control + centralized treatment", realizing sealed operation throughout the process from raw material feeding, conveying to mixing and packaging.
All material interfaces are physically sealed, paired with pulse-jet dust collectors and full-link adsorption pipe networks, which can effectively capture dust during the entire production process, reducing solid waste discharge in the workshop by 20%. Feedback from many enterprises after commissioning shows that the air cleanliness of the workshop has been significantly improved, which not only improves the working environment but also easily meets environmental regulations, saving enterprises a lot of environmental rectification costs.
Core Advantage 4: Intelligent Interconnection, Enabling Efficient Operation with Fewer Personnel
The "intelligent brain" of the non-standard customized system—the central intelligent control platform—makes production management simple and efficient. Through the industrial control touch screen, operators can realize one-click start/stop, formula calling, production monitoring and other functions. The system can also automatically record data such as the weight and time of each batch of materials, generating traceable production reports, laying the foundation for quality control and subsequent MES/ERP system integration.
In the packaging link, the system integrates an automated process of automatic packaging, edge folding and sewing, and robotic palletizing. Compared with traditional manual palletizing, the efficiency is increased by more than 60%. After the production line of an Anhui enterprise was put into use, the single-line labor cost decreased by 40% directly, and the comprehensive energy consumption was reduced by 12%, achieving dual benefits of cost reduction, efficiency improvement, energy conservation and carbon reduction.
With the country promoting the high-end, intelligent, and green development of the manufacturing industry, non-standard customized refractory batching lines are becoming a key support for the transformation and upgrading of the industry. From solving the pain points of traditional production to building an intelligent production closed loop, such "tailor-made" solutions not only enhance the core competitiveness of enterprises but also drive the refractory industry towards a new future of "transparent factories" and "zero-carbon workshops".
