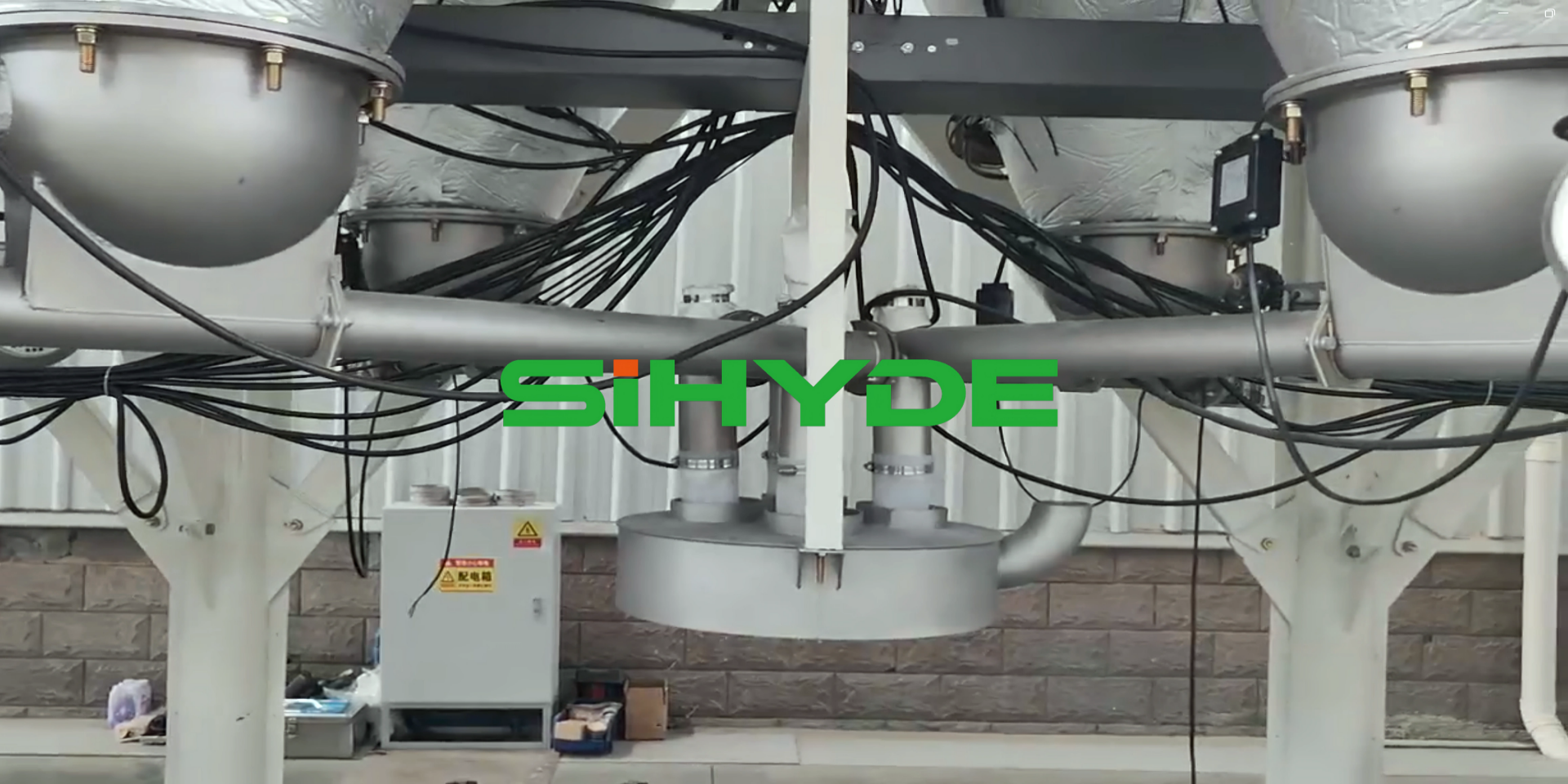

A food ingredient batching system must handle three demands at once: accurate ratios, a clean workshop, and traceability for every batch. Food raw materials are mainly powders with many varieties and frequent changeovers. Manual feeding introduces weighing errors and leaves residue when switching products, while workshop humidity and dust directly affect hygiene conditions. Once taste or specification deviations occur, the lack of production records makes it difficult to trace back to the specific batch. The Sihyde food ingredient batching system is deeply adapted to the cleanliness, safety, and precision dosing requirements of the food industry. Built around enclosed batching, multi-material separate-line weighing, and batch data traceability, it delivers precise batching, clean production, and traceable data.
Clean Enclosed Structure and Batching Module
Clean production: Per the official public solution description, the food ingredient batching system is engineered to the cleanliness and safety requirements of the food industry, with the batching stage centered on enclosed design to minimize material exposure.
Enclosed dust control: Silos, weighing units, and transfer points are connected with enclosed structures, keeping powder material contained and preventing dust from spreading, so that the burden on workshop environment and hygiene management is reduced. The dust collection unit can interface with environmental dust removal equipment (internal link: /307.html).
Easy to clean: Silo bodies and piping are arranged to minimize residue and facilitate cleaning, reducing material wall-cling and accumulation during product changeover and leaving operating space for cleaning tasks.
Multi-Material Separate-Line Weighing and Recipe Management Module
Multi-silo zoning: Per official public parameters, the non-standard customized automatic batching system offers 1 to 100+ storage silos with a single-silo capacity of 1 to 100 m³. Main ingredients, auxiliary ingredients, and trace components of a food recipe can be stored in separate silos independently, avoiding flavor and material cross-contamination.
Separate-line weighing: The weighing units cover 10–1000 kg per scale. Each component is matched to a weighing range based on its dosing amount, and trace components are assigned a dedicated small-range dosing channel.
Recipe recall: Recipe storage and one-click recall transform product changeover from "adjusting numbers one by one" into "loading a recipe," reducing deviations caused by manual ratio changes. Recipes, weights, and batch numbers are automatically recorded and can be exported for traceability.
Mixing and Batch Consistency Module
Mixing selection: Per official public configurations, the automatic mixing system offers multiple mixer types, including double-helix conical mixers, matched to material flowability and mixing uniformity requirements.
Process parameters: A mixing time of 1–30 min and a mixing volume of 0.1–4 m³ are official public parameters. The mixing uniformity of ≥98% applies to the double-helix conical mixer model alone and is not a general whole-line indicator.
Batch stability: Weighing and mixing are linked under a single control logic, reducing waiting and transfer between process steps and converging batch-to-batch variation for the same recipe.
Enclosed Conveying and Packaging Linkage Module
Conveying selection: Inter-process transfer options include screw conveying at 0.5–30 m³/h, belt conveying at 1–100 m³/h, tubular chain conveying at 0.2–10 m³/h, or pneumatic conveying over 5–100 m , selected based on material form, distance, and cleanliness requirements.
Packaging specifications: Finished-product packaging covers small bags of 1–50 kg and FIBC bulk bags of 200–1000 kg . The automatic packaging machine operates over 25–50 KG and integrates bag feeding, bag filling, sewing, and edge folding in a fully automated process.
Online re-inspection: The packaging section is equipped with weight detection and non-conforming-product rejection devices, linked to the batching control system. The automatic packaging and palletizing system can take over downstream palletizing and warehousing.
Application Scenarios and Customer Cases
Powder Batching Production Lines in the Food and Beverage Industry
Industry adaptation: Per official materials, the system has deployed applications in the food and beverage industry and is adapted to the batching scenarios of various food powders. Drying, seasoning, and compounding processes can all organize feeding sequences by recipe.
Cleanliness demands: Food workshops are sensitive to dust and hygiene. The combination of enclosed batching and enclosed conveying keeps dust inside the equipment, reducing workshop cleaning frequency and cross-contamination risk.
Investment rationale: Multi-silo zoning and recipe recall allow a single line to cover multiple varieties, reducing the duplicate investment of building separate lines per product.
Multi-Variety, Small-Batch and Changeover Scenarios in Food Plants
Changeover logic: When switching products, the corresponding recipe is recalled, and the batching and conveying stages organize feeding by the new recipe, so operators do not need to check values item by item.
Residue control: The enclosed structure reduces material wall-cling and accumulation in piping and silo bodies, and combined with cleaning operations, lowers the possibility of flavor and material cross-contamination.
Project information: Named customer names, project regions, and acceptance data for the food ingredient batching system in the food industry are not specified on the official website and are marked [to be supplemented]. This section only describes adapted scenarios and does not represent specific project performance.
Frequently Asked Questions
Q1: What accuracy can the food ingredient batching system achieve?
A1: The official website has not published a dedicated accuracy figure for food batching scenarios, and this draft does not introduce accuracy numbers from other industries. What is certain is that the core requirements of food batching are precise dosing, clean production, and traceable data. The 1 to 100+ storage silos and the 10–1000 kg per scale weighing range support range matching by component dosing amount. Specific accuracy indicators must be determined at the proposal stage based on materials and recipes.
Q2: How to avoid flavor and material cross-contamination during multi-variety rotating production?
A2: Three measures work together: different materials are stored in separate silos for source isolation; the batching and conveying stages are fully enclosed to reduce material exposure and wall-cling accumulation; and recipe recall replaces manual number adjustment to avoid operational deviation. The frequency and method of cleaning operations are arranged according to equipment structure and variety changeover rhythm.
Q3: Can batching data be connected with the downstream packaging line?
A3: Yes. Production data from the batching stage supports linkage with the packaging stage control system. The packaging section is equipped with weight detection and non-conforming-product rejection devices, and finished-product data can be retained together with upstream batch records for quality verification before delivery.
Conclusion
The value of the Sihyde food ingredient batching system comes down to five words: weigh accurately, keep it clean. Separate silo storage blocks material cross-contamination at the source; the enclosed batching structure keeps dust inside the equipment; separate-line weighing matches the weighing range to the dosing amount; and recipe recall plus batch records make every changeover traceable. For food and beverage enterprises, stabilizing the batching section provides a reusable foundation for consistent product taste and specifications.
