In automated batching systems, the bucket elevator is the core vertical conveying equipment that connects low-level raw material silos with high-level batching devices. It is suitable for powdery, granular, and small block materials, and its operational efficiency and stability directly affect the overall quality of the batching system.
I. Operating Principle and Process of the Bucket Elevator
The bucket elevator (also known as a bucket conveyor) drives hoppers through traction components to achieve continuous vertical conveying of materials. It is fully automated and linked with the control system of the batching system, with three core stages: feeding, lifting, and discharging.
(1) Core Components
It mainly consists of a casing, traction parts, hoppers, drive wheels, redirecting wheels, tensioning devices, and an electric control system. The fully enclosed casing prevents dust and leakage; the hopper material can be adapted as needed; the electric control system is connected to PLC/SCADA systems for precise control.
(2) Operating Process
Feeding: The feed inlet is connected to the low-level raw material silo. After the system issues a command, the hopper runs at a constant speed to the feed inlet, and materials flow in by gravity or auxiliary devices. The feeding speed can be adjusted via frequency conversion to adapt to material characteristics and prevent spillage.
Lifting: After loading materials, the hopper rises smoothly along the guiding device inside the casing. The enclosed environment prevents pollution and dust, and low-speed operation reduces material breakage. The lifting height and conveying capacity can be adjusted as needed for stable operation.
Discharging: The hopper runs to the top and flips, discharging materials precisely into high-level equipment via guide rails or centrifugal force. Empty hoppers cycle for operation, supporting single-point/multi-point discharging and seamless connection with batching processes.
II. Core Advantages of the Bucket Elevator
Compared with belt, screw, and pneumatic conveyors, the bucket elevator has outstanding advantages in adapting to automated batching needs, as follows:
High space utilization: Vertical conveying with a small cross-section and footprint (only 1/5–1/3 of similar equipment). It is suitable for tight plant spaces and multi-layer layouts, outperforming belt conveyors that require large horizontal space and screw conveyors with lifting limitations.
High conveying efficiency: Continuous cyclic operation without downtime, with flexible adjustment of conveying capacity to adapt to different scales of batching systems, avoiding blockages in screw conveyors and efficiency limitations in pneumatic conveyors due to material characteristics.
Outstanding environmental performance: Fully enclosed design with no dust emission or material leakage, protecting the production environment and material purity, suitable for high-standard industries such as food and pharmaceuticals, and superior to open belt conveyors and residue-prone screw conveyors.
Wide material adaptability and low breakage rate: Capable of conveying powdery, granular, and small block materials. Low-speed and stable operation reduces material collision and breakage, avoiding wear in screw conveyors and material breakage in pneumatic conveyors.
Low energy consumption and operating costs: No return material waste, with energy consumption 30%–50% lower than pneumatic and screw conveyors. Fewer wearing parts and simple maintenance reduce long-term operating costs.

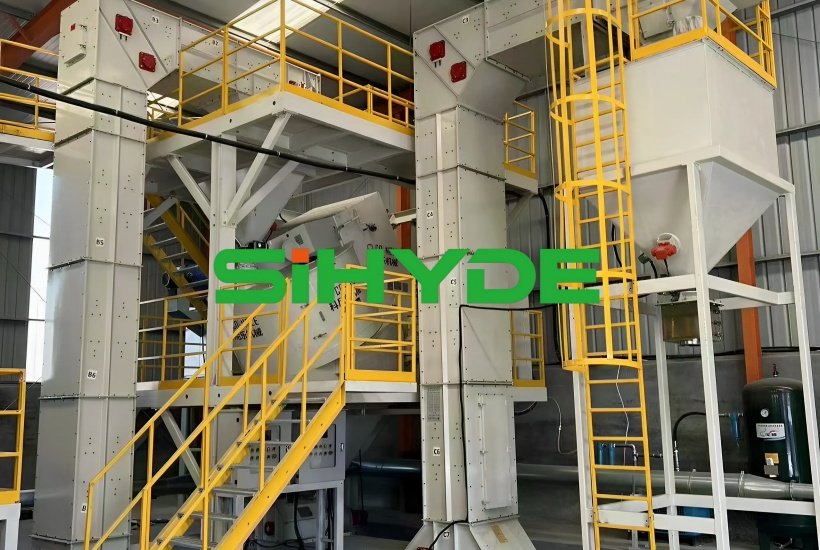

Strong automation adaptability: Seamless integration with batching systems, enabling precise control of conveying parameters, supporting multi-point feeding and discharging, and flexible layout, outperforming other conveying equipment with poor linkage and fixed paths.Sihyde Bucket Elevator
III. Conclusion
With its advantages of vertical efficiency, environmental protection, energy saving, and strong adaptability, the bucket elevator has become the core equipment for material conveying in automated batching systems. Qingdao Sihyde Automation Equipment Co., Ltd.has been deeply engaged in the automation field for many years. As a national science and technology innovation enterprise, we have deeply integrated the core advantages of bucket elevators with our customized technology. Combining material characteristics and plant layouts in different industries, we provide more adaptable bucket elevators and one-stop automated batching solutions.
By precisely matching material characteristics and deeply integrating intelligent control systems, Sihyde enables seamless linkage between bucket elevators and batching systems, leveraging their advantages of high efficiency, energy saving, and environmental cleanliness. Through customized design, we meet the personalized needs of multiple industries such as chemical, food, and building materials. Supported by full-cycle services, we provide solid support for enterprises to improve batching efficiency, product quality, and reduce operating costs, helping them achieve intelligent manufacturing upgrades.
