1. The Dilemma of Manual Batching: Why Change is Imperative?
During our visits to small and medium-sized enterprises, we often witness such a scene: workers holding formula sheets, rushing back and forth between different raw material barrels, weighing each one with an electronic scale before pouring it into the mixing barrel. This seemingly simple manual operation actually hides multiple risks:
First, there is the issue of accuracy. Manual weighing is limited by the operator’s proficiency and fatigue, making errors unavoidable. Data shows that even for well-trained workers, the weighing error rate rises significantly after two hours of continuous work. Second, there is an efficiency bottleneck. The speed of manual batching is constrained by manpower and space, making it difficult to meet the demands of large-scale production. Furthermore, there are management challenges. Manually recorded production data often suffers from delays and omissions, making it hard to trace specific links when quality fluctuations occur. With rising labor costs and intensifying market competition, these issues have become important factors restricting enterprise development.
2. The First Step in Automation: Simple Batching Systems
For small and medium-sized enterprises just starting to explore automation, a simple batching system is a low-threshold entry option.
The operation mode of this system is intuitive: a movable or fixed weighing hopper is set up, and different raw materials are sequentially fed into this hopper for cumulative weighing according to the formula order. For example, when producing a certain compound fertilizer, urea is weighed first, then monoammonium phosphate is added after the value stabilizes, and finally potassium chloride is added. All raw materials are sent to the mixer in one batch after weighing is complete.
The advantages of this method are small equipment investment, small footprint, and simple operation logic. However, its limitations are also obvious: the batching cycle is long because materials must be weighed in sequence; at the same time, there may be cross-contamination between successive materials, requiring additional consideration of cleaning issues in industries with high hygiene requirements. Therefore, this solution is more suitable for primary processing enterprises with no more than 5 types of materials, low daily output, and insensitivity to cross-contamination.
3. Boosting Efficiency: Independent Metering Batching Systems
When enterprises expand their production scale and demand higher accuracy and efficiency, independent metering batching systems become the ideal choice.
The design concept of this system is "each performs its own duties" — each raw material is equipped with an independent metering device. Take a health food production workshop as an example: vitamins, minerals, excipients, and other ingredients each have their own small weighing scale. They can start weighing simultaneously without interfering with each other, and all are collected into the mixing equipment after completion. This parallel operation mode doubles batching efficiency.
The advantages of the independent metering system are obvious: first, speed — multiple materials are metered simultaneously with a compact cycle; second, accuracy — each metering unit can be optimized individually according to material characteristics, such as vibration feeding for powdery materials and flow metering for liquid materials; third, isolation — materials do not contaminate each other, facilitating quality traceability. Of course, high configuration also means high investment, with a corresponding increase in the number of equipment and floor space. It is mainly suitable for industries with strict requirements on formulation accuracy, such as pharmaceuticals, precision ceramics, and high-end coatings.
4. The Art of Balance: Standard Batching Systems
Finding the optimal balance between cost and performance is the core concept of standard batching system design.
The ingenuity of this system lies in "group operations". Technicians divide materials into several groups according to the numerical distribution of the formula: main materials with large usage in one group, auxiliary materials with small usage in another, and trace additives in a third. Each group shares a set of metering devices, materials within the group are weighed sequentially, and groups operate in parallel. For example, in paint production, main materials such as resins and solvents are weighed on large scales, while additives such as driers and leveling agents are precisely weighed on small scales.

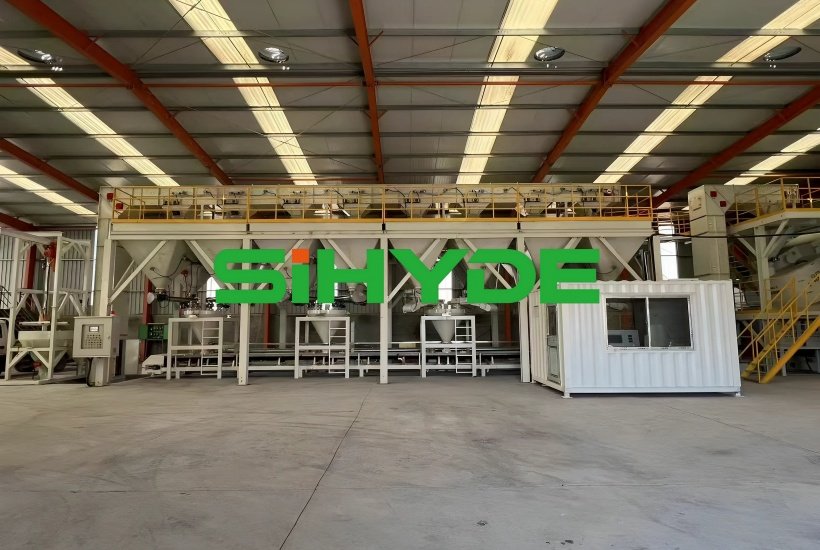

This grouping mode balances efficiency and accuracy: on the one hand, equipment investment is saved through sequential weighing within groups; on the other hand, production rhythm is ensured through parallel operation between groups. At the same time, the distinction between large and small scales ensures the metering accuracy of trace components. For this reason, this solution is the most widely used in many industries such as coatings, food, and building materials, and is a pragmatic choice with high cost performance.Sihyde Automatic Batching Production Line for Castables
5. Flexible Solutions: Mobile Cart Batching Systems
In industries such as chemicals, feed, and lithium battery materials, challenges often arise: dozens of material types, frequent formula changes, and limited production space. Mobile cart batching systems are designed to solve these complex scenarios.
The core of this system is a mobile metering cart installed on a track. Like a flexible "procurement officer", the cart automatically travels to the bottom of different raw material silos according to formula instructions, sequentially receives materials for cumulative weighing, and then heads to the discharge point after all batching is complete. For example, in a large premix feed factory, one mobile cart can serve dozens of raw material silos, easily handling various complex formulas.

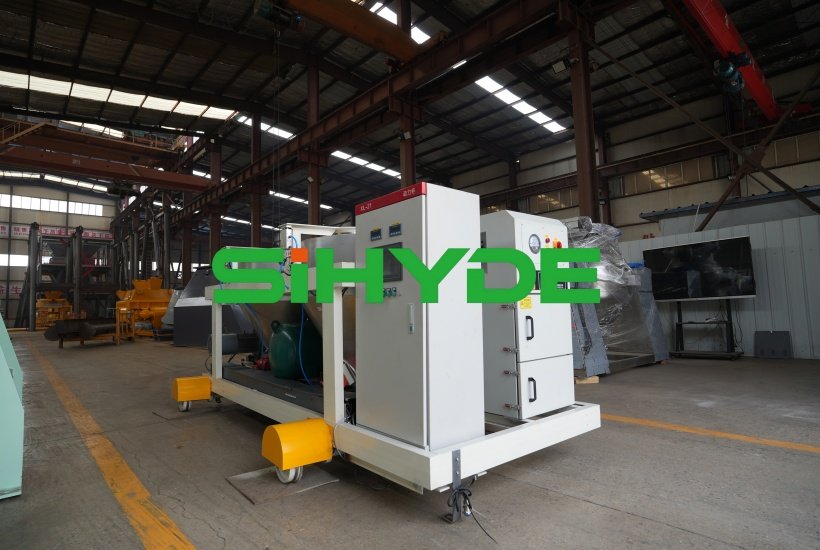

The biggest advantages of the mobile cart system are flexibility and space utilization. It does not require fixed metering equipment for each material, but achieves "one machine for multiple uses" through movement. At the same time, since the cart can precisely control its travel path, it is also convenient to realize a fully enclosed dust-proof design. However, this places higher requirements on the control system — the cart’s positioning accuracy, communication stability, and coordination of travel speed all need careful design. Currently, this solution has been successfully applied in large-scale integrated factories.Sihyde Mobile Metering Cart
Conclusion: Choosing the Right Solution Yields Twice the Result with Half the Effort
From simple to independent, from grouping to mobile, each batching method has its unique positioning and value. When choosing, enterprises need to comprehensively consider their own product characteristics, production scale, capital budget, and future development plans. There is no best system, only the most suitable solution.
With the advent of the Industry 4.0 era, batching systems are developing towards being more intelligent, flexible, and green. Some leading enterprises have begun to try introducing artificial intelligence into the formula optimization process, connecting batching data to enterprise management systems, and realizing digital control of the entire production process. It can be predicted that future batching systems will not only be tools for executing instructions, but also intelligent nodes for assisting decision-making, injecting continuous power into the quality improvement and efficiency enhancement of industrial production.
