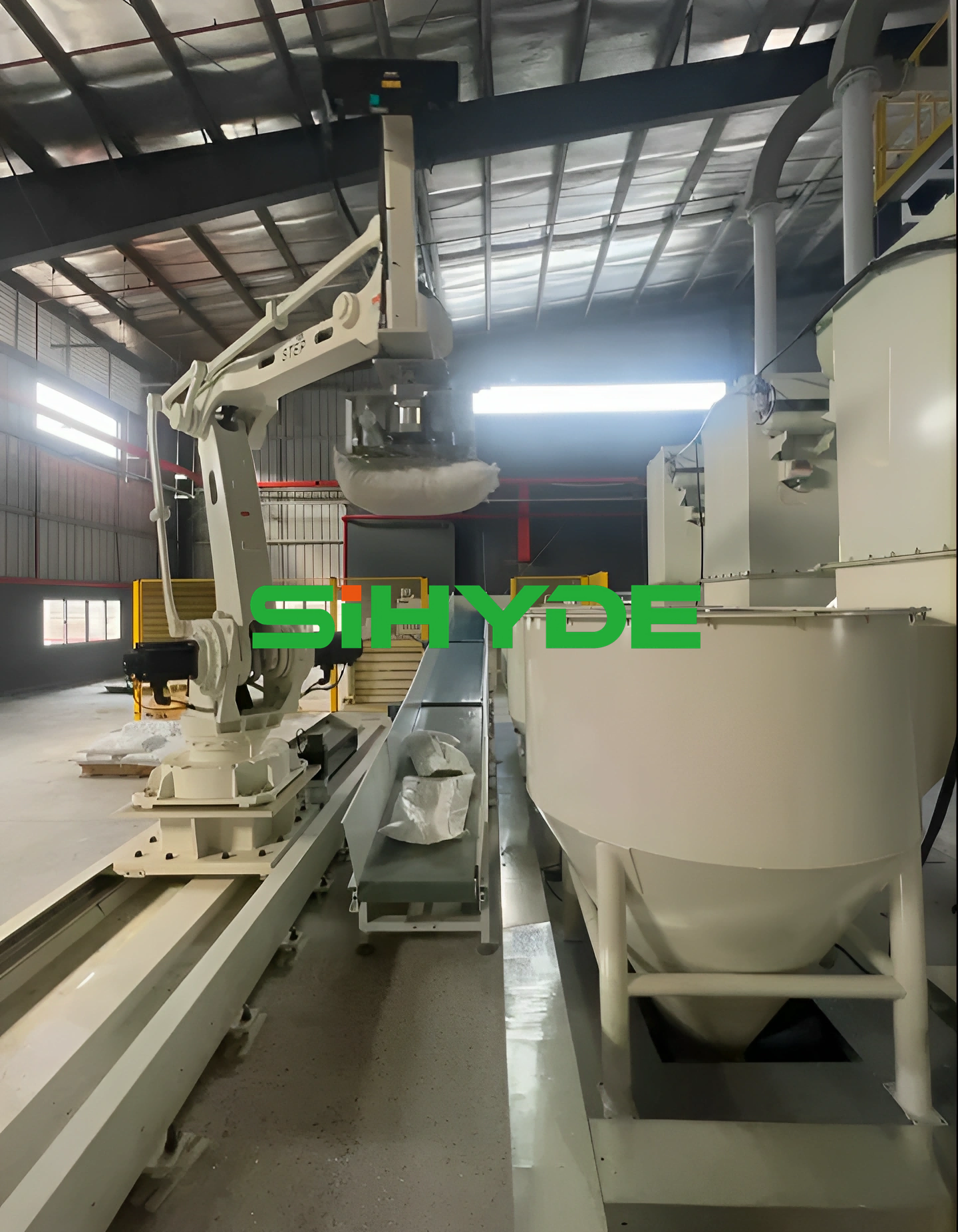

Traditional manual bag opening and feeding processes have long faced challenges such as fluctuating efficiency, uncontrollable dust pollution, high staff turnover due to intensive labor, and health risks from operators contacting toxic or hazardous materials. The Sihyde Robotics Fully Automatic Bag Opening System, integrating industrial robots with 3D vision and intelligent control technology, provides a full-process unmanned solution—from bag gripping, precise cutting, closed discharging, to waste bag recycling. Its core advantages lie in closed-loop full-process control, clean and safe design, and high adaptability to existing production lines, empowering intelligent upgrading of the bag-opening stage.
Core Module Breakdown
1. 3D Vision and Flexible Gripping Module
Recognition and Adaptability: Equipped with an industrial-grade 3D vision system, it automatically identifies bag dimensions, weight, material (woven bags, paper bags, composite bags, and jumbo bags), and stacking postures—no manual pre-positioning required. It accommodates irregular stacking and multi-category mixed-material operations.
Flexible Gripping and Compatibility: Uses customized vacuum suction cups or flexible grippers that adaptively adjust gripping paths and force, ensuring stable gripping without damaging bags or materials. It covers the full range from 25 kg small bags to 1000 kg jumbo bags.
Gripping and Protection: Through vision guidance and force control technology, it ensures both high efficiency and bag integrity during gripping, providing the prerequisite for subsequent precise cutting.
2. Closed Cutting and Micro-Negative-Pressure Dust Control Module
Cutting Method: Within a fully enclosed cutting chamber, high-speed precision cutting or slitting technology delivers controllable, neat incisions—preventing material splashing while ensuring stable and efficient cutting.
Leak-Proof Design: The entire cutting process is conducted in a sealed environment, containing dust at the source. It meets the stringent clean-room requirements of food, pharmaceutical, lithium-battery, and other industries, effectively protecting the working environment and personnel health.
Dust Collection and Recovery: Equipped with a micro-negative-pressure dust collection system that captures dust generated during cutting and discharging in real time, preventing cross-contamination and facilitating recovery of valuable powdered materials.
3. Intelligent Vibration Emptying and Anti-Blocking Discharge Module
Discharging Principle: After cutting, coordinated vibration of the bag, elastic scraping, and screw conveying effectively clean residual material inside the bag. Actual residual rate is controlled at ≤0.5%, reducing waste of high-value raw materials.
Anti-Blocking and Flow Assistance: To address powder bridging and particle arching, vibration breaking devices and Teflon anti-stick inner surfaces are incorporated, ensuring continuous and stable material conveying and reducing downtime for cleaning due to blockages.
Cleaning Convenience: Material-contact parts are made of 304/316L food-grade stainless steel, mirror-polished, and feature dead-corner-free quick-release designs for easy daily cleaning and rapid batch changeovers.
4. Waste Bag Automatic Recycling and Closed-Loop Module
Recycling Process: The system automatically completes cutting, discharging, bag separation, and conveying. Empty bags are collected into a recycling area for compression—no manual intervention required.
Contamination Prevention: Eliminates the risk of waste bags mixing with materials or polluting the production line, ensuring standardized disposal of packaging waste in line with green production concepts.
Closed-Loop Monitoring: The entire waste-bag handling process is interlocked with the main control system for integrated operation, ensuring clear separation and full traceability of material flow and waste flow.
Conclusion
The Sihyde Robotics Fully Automatic Bag Opening System—with its stable, high-efficiency capacity (90–100 small bags per hour per system), precise residual control, and mature modular design—directly addresses the efficiency, environmental, and safety pain points in the bag-opening stage of powder and pellet industries. It is not merely a labor-replacement solution, but a reliable choice for building intelligent, clean production lines, providing strong support for continuous production and lean management.
