In automatic batching production lines , bucket elevators and vacuum loaders are both commonly used material conveying equipment. They each have their own applicable scenarios and advantages and disadvantages. The following is a comparison between the two:
Bucket elevator (bucket elevator)
advantage:
1. Large carrying capacity: suitable for conveying granular, small block, powder and other materials, especially materials with high density.
2. Long conveying distance: vertical or inclined conveying over long distances can be achieved.
3. Simple structure: easy maintenance and relatively low failure rate.
4. Strong adaptability: can work in harsh environments such as high temperature, high pressure, and dust.
shortcoming:
1. Large footprint: requires a certain amount of installation space.
2. High energy consumption: During the transportation process, the energy consumption is relatively high because it is necessary to overcome the gravity of the material.
3. There may be leakage problems: Especially when conveying powdered materials, special attention should be paid to sealing.

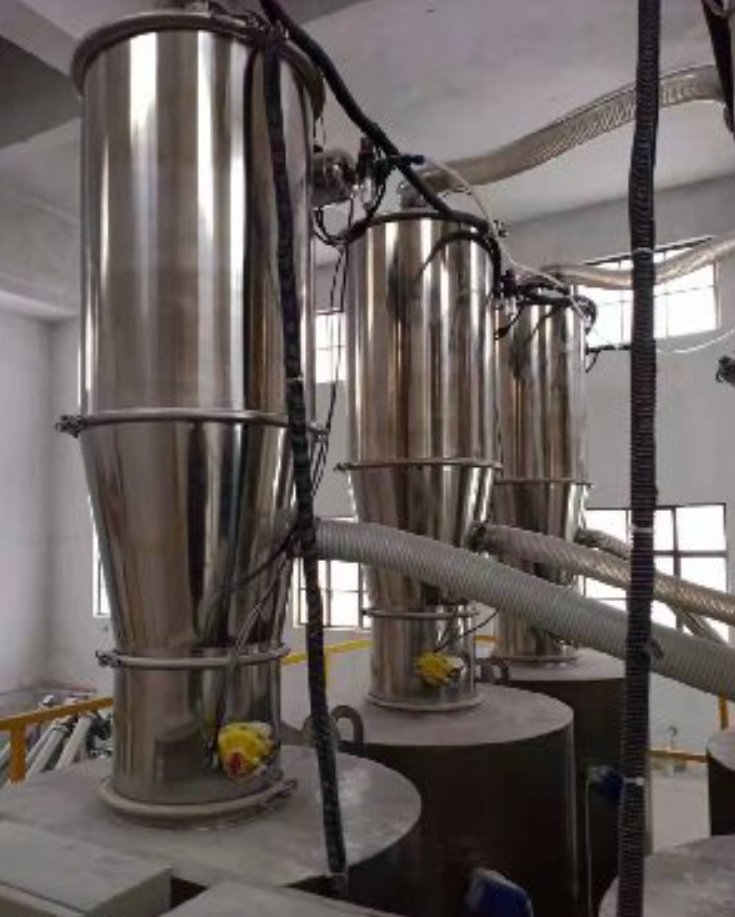

Vacuum loader
advantage:
1. Fast conveying speed: it can achieve high-speed material conveying.
2. Dust-free and environmentally friendly: It is particularly suitable for conveying powders, small particles and other dust-prone materials, which can keep the working environment clean.
3. Space saving: Since the delivery pipeline can be arranged flexibly, it occupies a small area.
4. Accurate delivery: accurate batching and metering can be achieved.
shortcoming:
1. Limited conveying capacity: Compared with bucket elevator, its conveying capacity is smaller and it is not suitable for conveying large or high-density materials.
2. Limited conveying distance: generally suitable for short-distance conveying.
3. Restrictions on materials: Materials with high humidity, easy to stick together or unstable chemical properties cannot be transported.
Select suggestion:
- When the amount of material to be transported is large, the distance is long, and the environment is relatively harsh, a bucket elevator can be selected.
- When conveying delicate materials, maintaining a dust-free environment, or when space is limited, a vacuum loader may be a better choice.
When selecting conveying equipment for an automatic batching production line, it is necessary to comprehensively consider factors such as the actual material properties, production environment, and cost budget to select the most suitable equipment.
