10-Silo Automatic Batching System for Foundry Core Sand Preparation
Sihyde designed and integrated a 10-silo automatic batching system for foundry core sand preparation.
The system stores, meters, weighs and transfers multiple granular and powder ingredients before downstream core-making production. It combines ten independent storage silos, automatic weighing units, staged feeding control, a rail-mounted batch transfer car, sealed material docking, centralized dust collection and PLC-based recipe management.
Built around the customer’s material characteristics and production process, the system replaces separate manual handling, weighing and transfer operations with one coordinated batching process. The specified weighing accuracy is ±0.5%, in accordance with the project’s technical requirements.
Project at a Glance
| Item | Configuration |
|---|---|
| Application | Foundry core sand preparation |
| Storage configuration | 10 independent material silos |
| Material classification | 5 granular material silos and 5 powder material silos |
| Feeding methods | Vibratory feeding and controlled butterfly-valve feeding |
| Weighing | Independent automatic weighing units |
| Calibration | Automatic zero correction and weighing verification |
| Batch transfer | Rail-mounted automatic transfer car |
| Transfer-car capacity | Approx. 450 L |
| Typical loading quantity | Approx. 400 L per cycle |
| Weighing accuracy | ±0.5%, specified by the project |
| Control system | PLC, industrial PC and HMI |
| Dust management | Central pulse-jet dust collection and sealed transfer interfaces |
| Engineering scope | System design, equipment integration, control programming, commissioning and operator training |
Project Challenge
Before the upgrade, the customer relied on manual material handling and batching. Operators transported raw materials to the storage platform, loaded individual silos and coordinated weighing and transfer operations manually.
This created several challenges:
Maintaining consistent ingredient proportions across repeated batches
Handling granular and powder materials with different flow characteristics
Reducing dust generated during charging, weighing and transfer
Lowering dependence on manual material handling
Improving coordination between batching and downstream core-making equipment
Sihyde developed a centralized batching system that separates material storage, controls each ingredient’s feeding process, verifies batch collection and automatically transfers the completed batch to the designated discharge point.

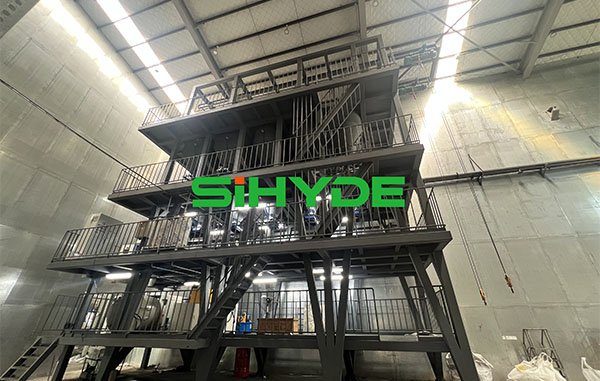

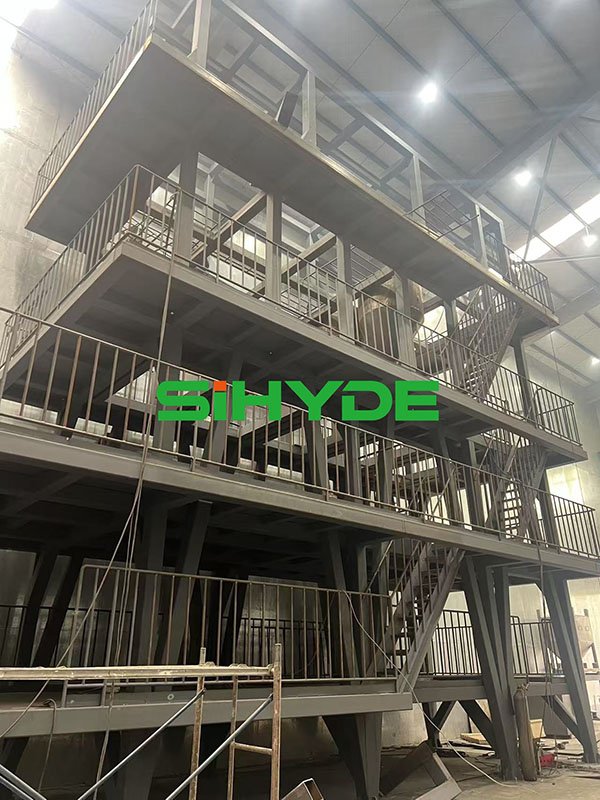

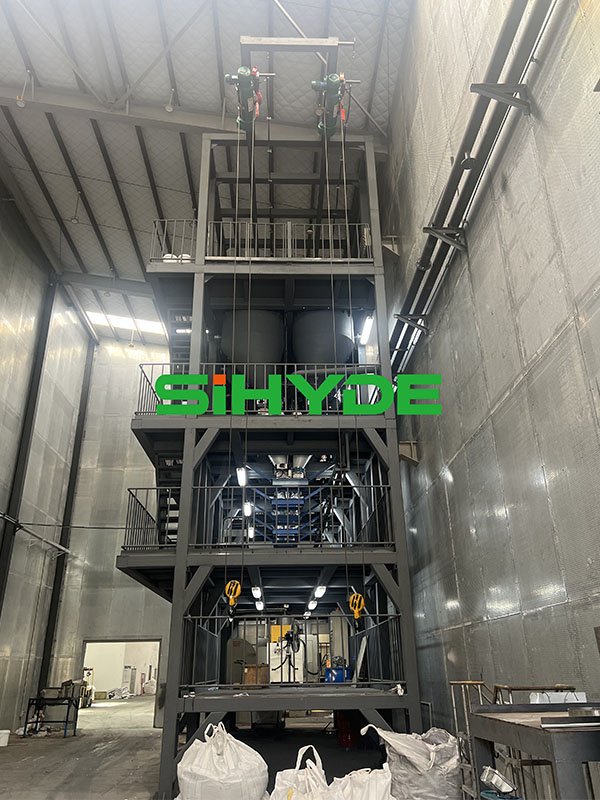

Ten-Silo Material Storage and Feeding
The system uses ten independent silos: five for granular materials and five for powder materials. Each silo is assigned to a dedicated ingredient, helping the customer manage recipes and keep materials separated during storage and batching.
High-level and low-level sensors monitor material levels. Low-level alarms indicate when replenishment is required, while high-level detection helps prevent overfilling during material charging.
The feeding method is selected according to each material’s flow characteristics:
Two granular-material silos use combination vibratory feeders.
The remaining eight outlets use controlled butterfly-valve feeding.
Powder-material silos include pneumatic flow-assist and wall-cleaning devices to reduce bridging, arching and adhesion.
The feeding sequence uses bulk and fine stages. Material is discharged quickly during the bulk-feed stage, then the flow rate is reduced as the target weight is approached. This arrangement balances batching speed with weighing control.
![]()

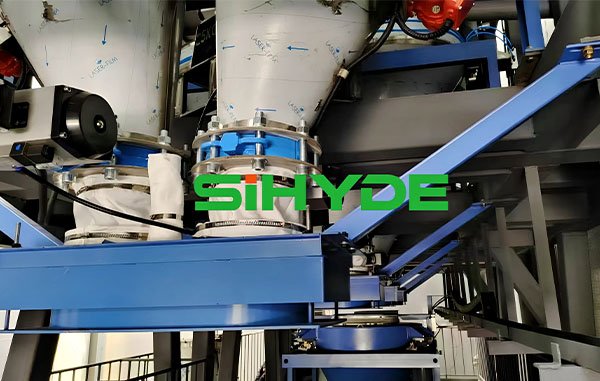

Automatic Weighing and Calibration
Each material silo is connected to an independent weighing hopper, creating a dedicated metering unit for each ingredient.
After an operator selects a recipe through the HMI, the PLC activates the required feeding equipment. The system monitors material weight through load-cell measurement and automatically changes from bulk feeding to fine feeding as the programmed setpoint is approached.
Each weighing unit includes automatic calibration capability for programmed zero correction and weighing verification using reference weights. The specified weighing accuracy for the project is ±0.5%.
After a material reaches its target weight, the system confirms that the weighing unit is ready for batch collection.
Rail-Mounted Batch Collection and Transfer
A rail-mounted transfer car collects the weighed ingredients and transports the completed batch to the downstream discharge point.
The transfer car performs four coordinated functions:
Automatic positioning
The car travels along the rail to the required weighing hopper or discharge station.Sealed docking
A pneumatic lifting mechanism raises the receiving interface and seals the connection before material discharge.Batch collection and verification
The car receives the weighed ingredients according to the selected recipe. Its onboard weighing system verifies the accumulated batch weight.Automatic discharge
Once the car reaches the designated discharge position and docking conditions are confirmed, the discharge valve opens and releases the completed batch.
With an approximate hopper capacity of 450 L and a typical loading quantity of around 400 L per cycle, the transfer car links the weighing stage with downstream core-sand production.
![]()

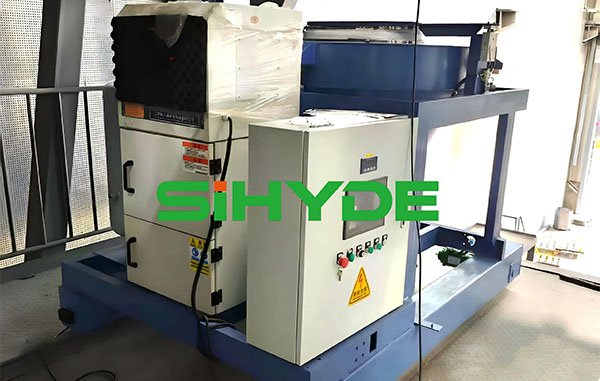

Dust Collection and Process Control
Dust-control measures are integrated into the storage, weighing and transfer stages.
The system includes dust-collection connections at the silos, sealed docking at the transfer interfaces and a central pulse-jet dust-collection system. These measures help manage dust generated during material charging, collection and discharge.
A centralized PLC, industrial PC and HMI coordinate the full batching sequence. Operators can select recipes, monitor material weights and equipment status, review alarms and follow the operating status of the transfer car and weighing units.
Operating Sequence
The automatic batching process follows a clear sequence:
Raw materials are loaded into their designated silos.
Level sensors monitor silo status and provide replenishment or high-level alarms.
The operator selects the required recipe through the HMI.
The PLC activates the relevant feeding equipment and each ingredient is weighed in its assigned hopper.
Feeding changes from bulk to fine mode as the target weight is approached.
The transfer car docks with the relevant weighing hopper and collects the weighed ingredients.
The onboard weighing system verifies the collected batch weight.
The transfer car moves to the designated discharge station and releases the completed batch.
Key Benefits of the System
Ten independently stored materials for recipe-based batching
Material-specific feeding for granular and powder ingredients
Bulk-and-fine feeding control for improved weighing management
Independent weighing units with automatic calibration capability
Rail-mounted collection and transfer of completed batches
Onboard batch-weight verification
Sealed material transfer and centralized dust collection
PLC and HMI control for recipe management, monitoring and alarms
Reduced reliance on repetitive manual weighing and transportation
![]()
Frequently Asked Questions
How many materials can the system batch?
This configuration independently stores and meters ten materials. The number of silos, feeding methods and weighing units can be customized according to the customer’s recipe requirements.
Can the system handle both powder and granular materials?
Yes. The feeding arrangement is selected according to material characteristics. This project uses vibratory feeders for designated granular materials and controlled butterfly-valve feeding with flow-assist devices for applicable materials.
Can the system be integrated into an existing foundry?
Yes. A batching system can be designed around the available plant layout, material-charging method, structural conditions, production recipes and downstream core-making equipment.
